Transmission output shaft leak
I’am seeing some oil on the garage floor. Turns out leak is from a defective transmission output shaft seal.
Leaking trans fluid has washed the lower surface of transmission housing.

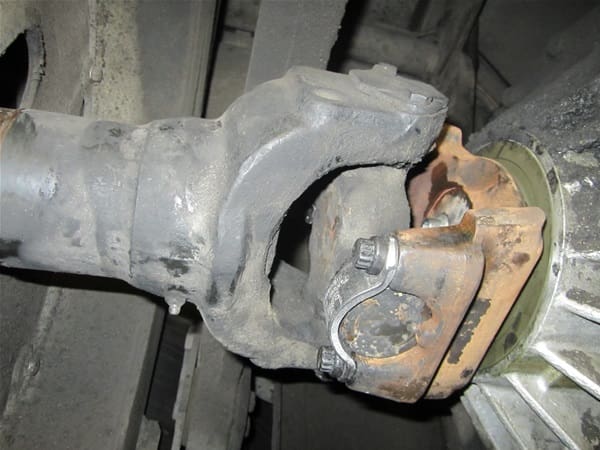

New seal installed in transmission, cleanup area. Note new u-joint saddle clamps and bolts. These are always replaced with any drive shaft service as eliminating u-joint coupling failure, bolts torqued to spec.
-
3 Replies
-
Good job Al!
-
Al,
Did you have to drain the transmission fluid to change the seal? Or is the level below the seal?
My output shaft is oozing a bit when driving but no dripping when parked. But changing the seal is probably in my future too
Gerald
-
Had my trans seal fee placed at Prevost JAX in Sept. The old seal had worn a groove in the shaft (only 54000 miles but 15 years). Prevost has a sleeve that fits over the shaft so the groove does not destroy the new seal. Also replaced the U-joint as the old one was VERY rough. Less than 1qt of trans fluid added. Invoice $740
